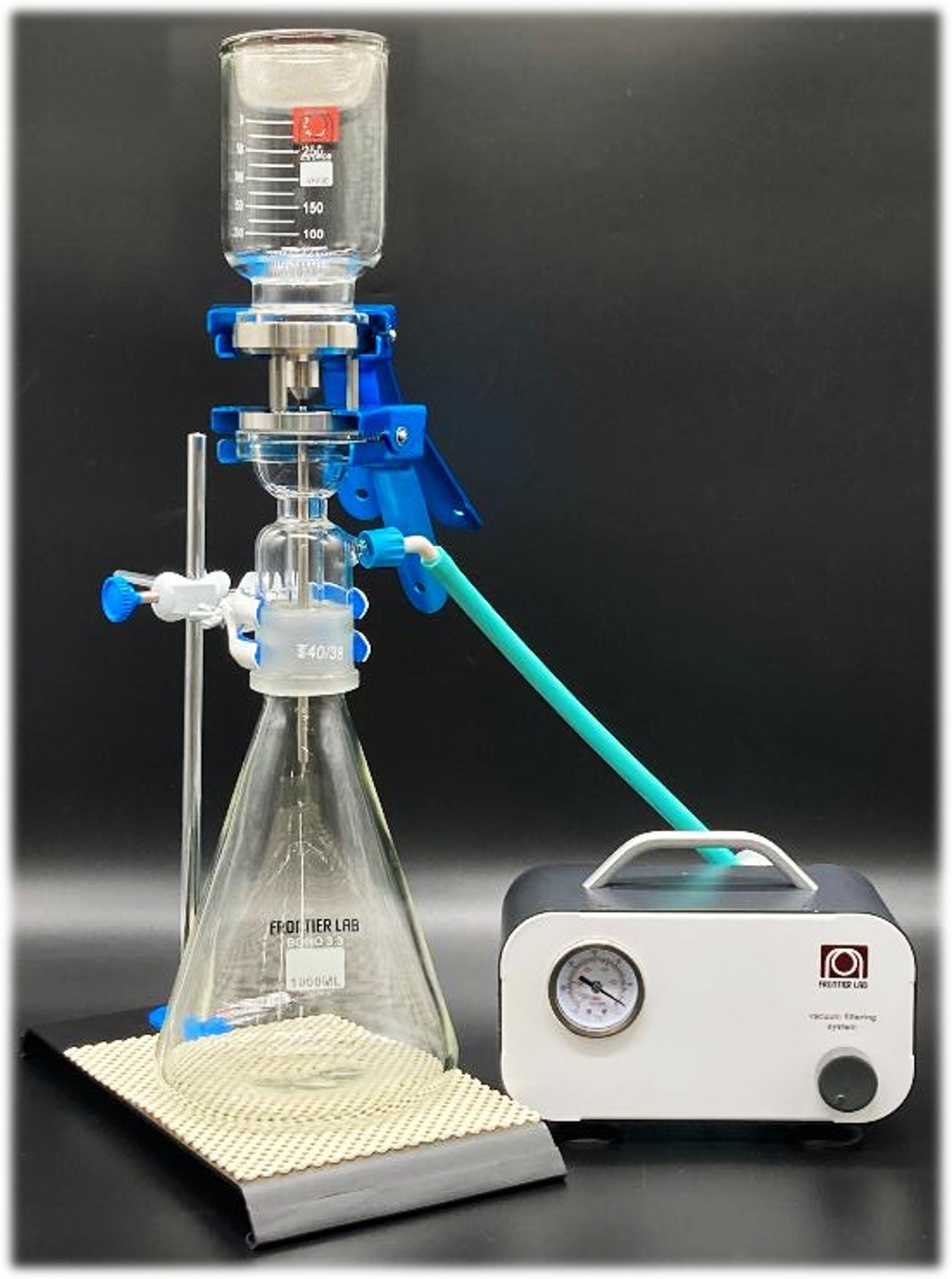

Smart Fine Particle Collector (SFPC)
NEW
Perfect for direct collection of microplastics in drinking water
The pretreatment of clean water samples in microplastics (MPs) analysis commonly involves the use of vacuum filtration.
This device allows users to choose the appropriate collection approach based on the analytical method and sample water volume (typically less than or greater than 1 liter),
ensuring efficient collection of MPs from water samples.
Features
Specifications

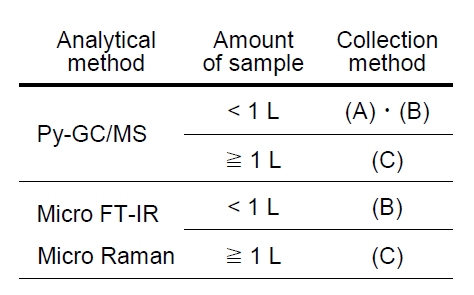

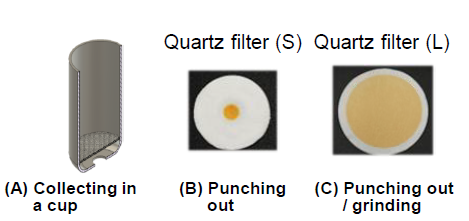

1. Three collection methods can be selected depending on analysis technique and sample water volume
2. Py-GC/MS analysis can be performed after spectroscopic analysis
The Quartz filter methods (B) and (C) allow Py-GC/MS analysis after non-destructive analysis, such as spectroscopic analysis.
3. Newly developed collection cup with a metal filter
Method (A) uses a newly designed collection cup with a built-in metal filter, allowing direct Py-GC/MS analysis of collected MPs.
For details on the collection methods, please see the product catalog.
Capacity:
Funnel: 300 mL, Flask: 1000 mL
Processing speed(distilled water used):
(A) Collection cup method: approx. 180 mL / min
(B) Quartz filter (S) punch-out method: approx. 60 mL / min
(C) Quartz filter (L) punch-out/grinding method: approx. 2 L / min
Collectable particle size:
Filter dependent
Collection cup:
Eco-Cup LHF (Bottom hole Φ1 mm, Deactivated stainless steel),
Metalfilter (1 μm opening, Deactivated stainless steel)
Vacuum pump:
Oil-free vacuum pump
Power requirement:
100 ~ 240 VAC, 50/60 Hz, 30 VA
