Micro Reactors(Rx-3050TR、Rx-3050SR)

P/N: PY1-EC80F

Eco-Cup LF

4 mm o.d. x H 8 mm,

80 μL, made of stainless

steel

Qty: 100

P/N: PY1-ES10F

Eco-Stick SF

For stainless steel

Eco-Cups, L 30 mm,

for Single-shot

Qty: 50

P/N: PY1-1274

ITF Needle Set N

Deactivated needle for

PY-3030,PY-2020 and

Rx-3050

Qty: 3

P/N: PY1-2017

O-ring (P-6W)

Quartz pyrolysis tube seal for PY-3030, translucent silicon rubber

Qty: 20

P/N: PY1-3513

Interface Union N

With nut

Qty: 1

P/N: PY1-7911

Graphite Vespel Ferrule

6 mm hole i.d.,

for interface

Qty: 5

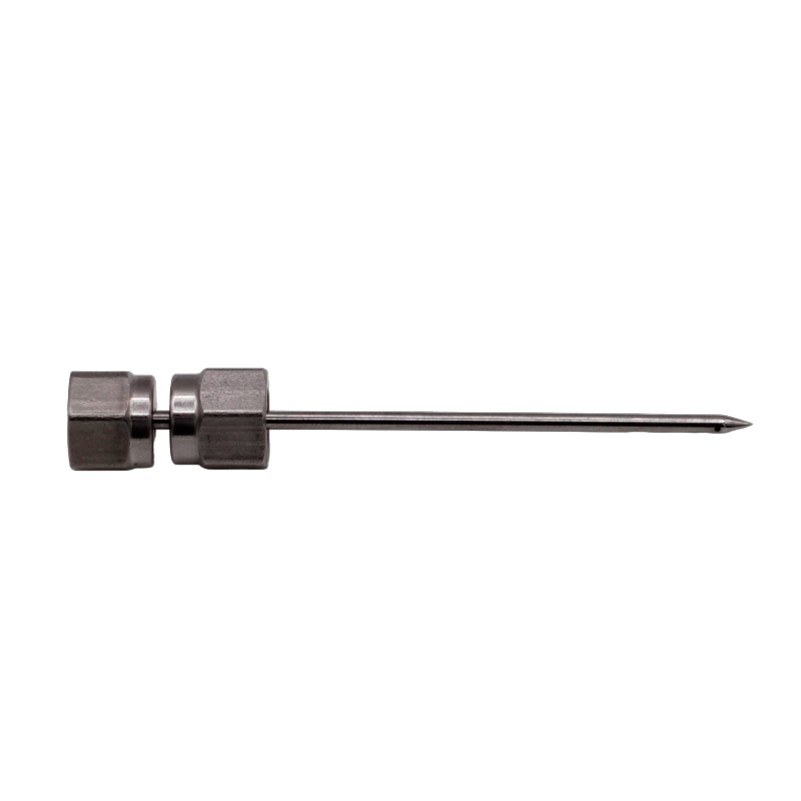

P/N: Rx1-1279

Rx ITF Needle B Set

1/16” o.d., with nut and ferrule

Qty: 3

P/N: Rx1-3534

Rx ITF Union A

With reaction gas feed tube

Qty: 1

P/N: Rx1-3535

Rx ITF Union B

1/16” – 1/4”

Qty: 1

P/N: Rx1-3540

Rx Deactivated SS Tube A

For Tandem/Single micro-Reactor,

6 mm o.d., 120 mm length,

deactivated stainless steel

Qty: 1

P/N: Rx1-3546

Rx Deactivated SS Tube B

For 2nd reactor of Tandem micro-Reactor,

6 mm o.d., 120 mm length,

deactivated stainless steel

Qty: 1

P/N: UA1-30M-2.0F

Ultra ALLOY ® Capillary Column

dimethylpolysiloxane,

30 m, 0.25 mm i.d., 2.0 um

Qty: 1

P/N: UADTM-2.5N

EGA Capillary Tube

0.15 mm i.d., 2.5 m, with a cage

1 ea

Qty: 1

1st and 2nd Reactor furnace parts

P/N: PY1-5112

Fine Quartz Wool 0.5 g

0.5 g

Qty: 1

P/N: Rx1-1279

Rx ITF Needle B Set

1/16” o.d., with nut and ferrule

Qty: 3

P/N: Rx1-3546

Rx Deactivated SS Tube B

For 2nd reactor of Tandem micro-Reactor,

6 mm o.d, 120 mm length,

deactivated stainless steel

Qty: 1

P/N: Rx1-3541

Rx Blank Quartz Insert A

3 mm i.d., 4 mm o.d., 78 mm length

Qty: 5

P/N: Rx1-3542

Rx ZMS-5 Quartz Insert A

3 mm i.d., 4 mm o.d., 78 mm length

Qty: 1

P/N: Rx1-3556

High temperature-resistant O-ring (S4)

Fluorine rubber, Black

Qty: 10

1st Reactor furnace parts (others)

P/N: PY1-1036

Liquid Injection Sampler A

Liquid sampler for all pyrolyzers and micro reactors

Qty: 1

P/N: PY1-1040

Single-Shot Sampler

For all Single-Shot pyrolyzer

Qty: 1

P/N: PY1-2023

High Pressure Solid Sampler Stand

Qty: 1

P/N: PY1-3631

Storage Stand 30A

One piece type

Qty: 1

P/N: Rx1-2501

Rx Tandem Reactor Cover A

Qty: 1

P/N: Rx1-3579

Rx Heat Sink Adapter Set B

For Tandem micro-Reactor

Qty: 1

2nd Reactor furnace parts (others)

P/N: PY1-3563

ITF Cover 3030A

Interface cover for

EGA/PY-3030D, PY-3030S,

Rx-3050TR, Rx-3050SR,

includes set screw(3 ea)

Qty: 1

P/N: PY1-3631

Storage Stand 30A

One piece type

Qty: 1

P/N: Rx1-2504

Rx Interface Cover B

For Tandem micro-Reactor, cover for interface between 1st and 2nd reactor

Qty: 1

Controller parts

P/N: PY1-3751

USB Cable Fixing Bracket

Qty: 1

P/N: PY1-6034

Noise Filter for AC Power Cable

Qty: 1

P/N: PY1-7001

AC Power Cable 100V

for UL standard 100 – 120 V

includes noise filter 09 (1 ea)

Qty: 1

P/N: PY1-7022

AC Power Cable 200VF

for VDE standard 200 – 240 V

includes noise filter 13 (1 ea)

Qty: 1

P/N: PY1-7025

AC Power Cable 200VF

for CCC standard 200 – 240 V

includes noise filter 13 (1 ea)

for China only

Qty: 1

P/N: PY1-7032

AC Power Cable 200VF

for KC standard 200 – 240 V

includes noise filter 13 (1 ea)

for Korea only

Qty: 1

P/N: PY1-7612

Cooling Gas Tube

For cooling gas,

4 mm o.d., 2 mm i.d., 1.5 m

*refer to PY1-7801(Cooling Gas Connecting Tube) if a quick connector is required.

Qty: 1

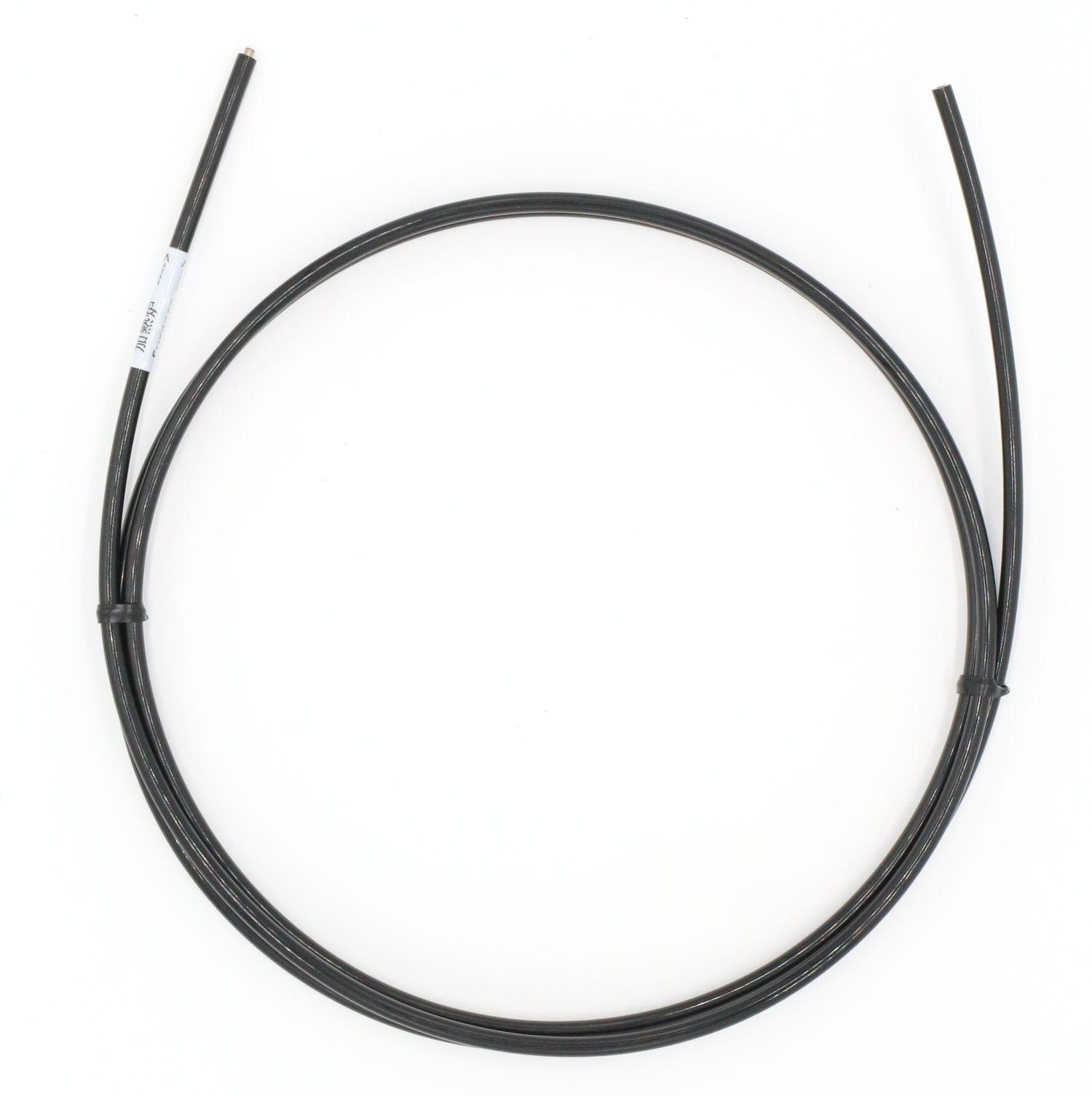

P/N: PY1-7613

Cooling Gas Tube

With restrictor, 1.5 m

Qty: 1

P/N: PY1-7614

Nylon tube branching adapter

For Tandem micro-Reactor cooling gas franching,

4 mm o.d. Nylon tube

Qty: 1

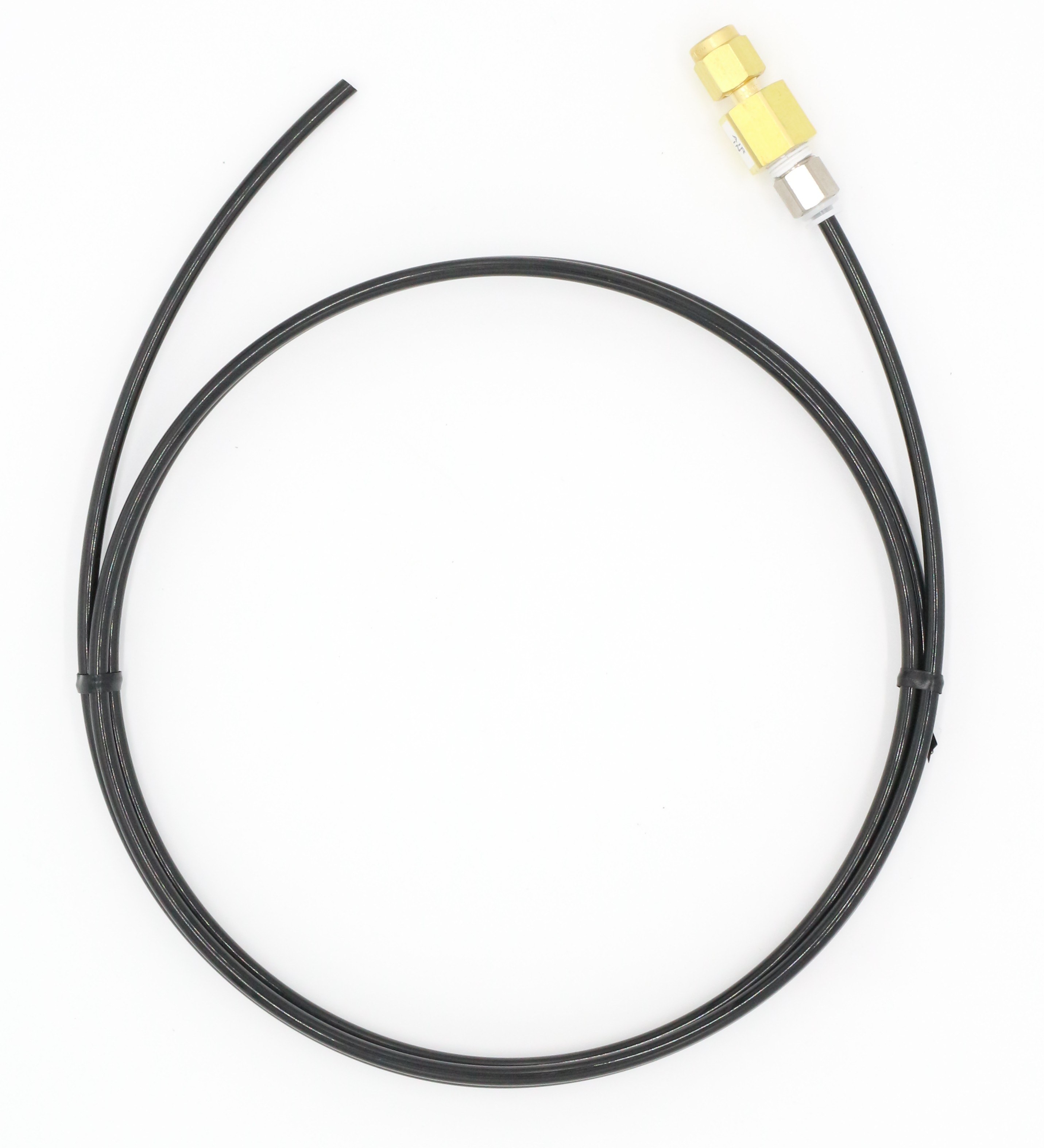

P/N: PY1-7801

Cooling Gas Connecting Tube

With one-touch connector and

1/8 Swagelok female, 1.5 m

Qty: 1

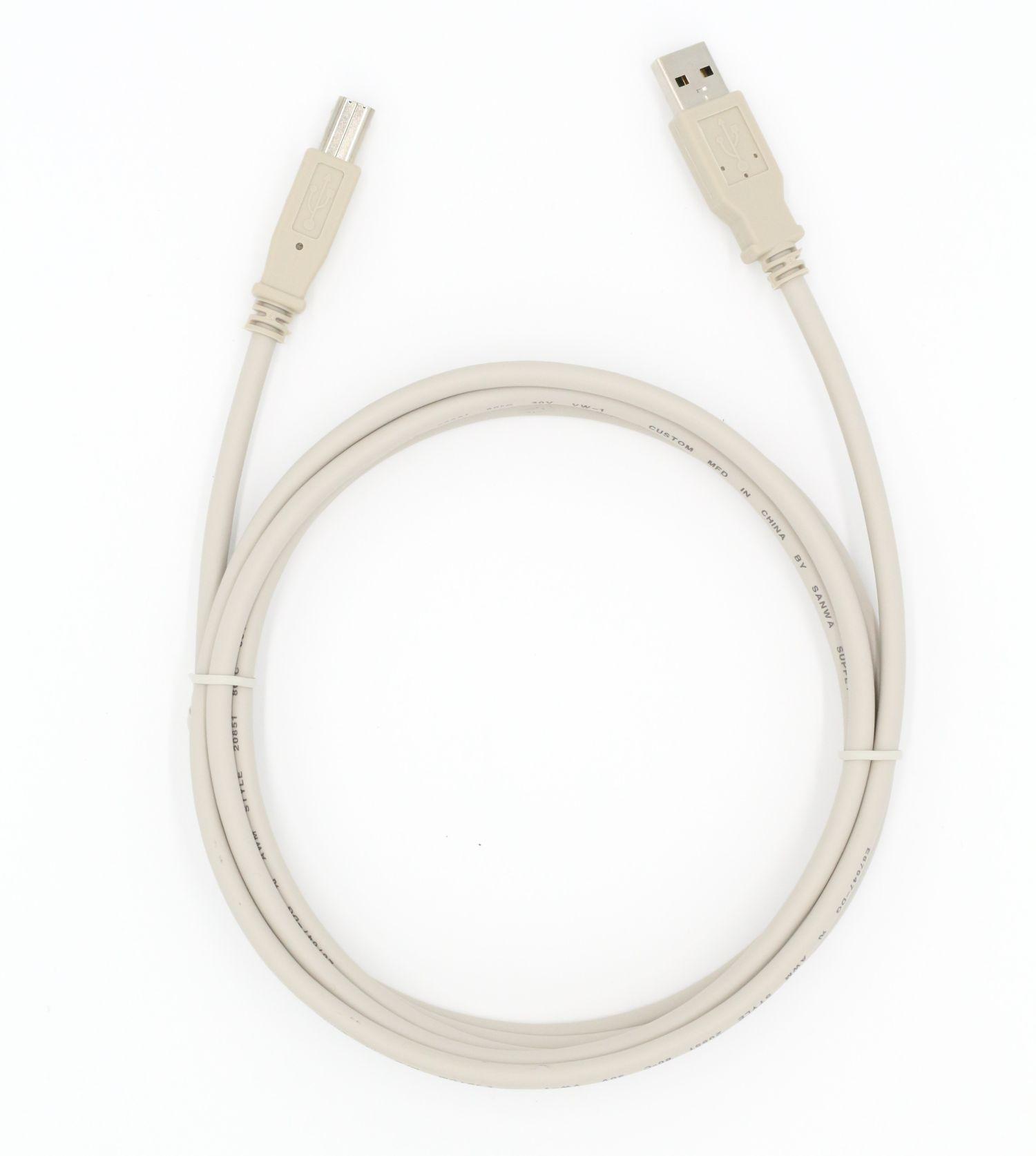

P/N: PY1-7805

USB Cable

2 m,

type A male – type B male

Qty: 1

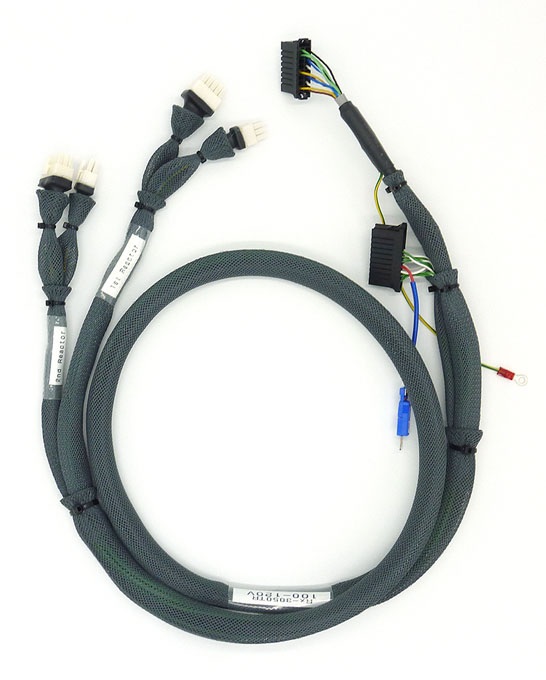

P/N: Rx1-7808

Tandem micro-Reactor Control Cable

1.5 m

Qty: 1

Other parts

P/N: PY1-EH10AL

Eco-Stand AL

Eco-Cup stand for 1 cup, for

all Eco-Cups, made of

aluminum

Qty: 5

P/N: PY1-EP55F

Eco-Pickup F

For stainless steel Eco-Cup

recovery, L 135 mm

Qty: 5

P/N: PY1-2025

Septum

For liquid sampler

Qty: 20

P/N: PY1-3563

ITF Cover 3030A

Interface cover for

EGA/PY-3030D, PY-3030S,

Rx-3050TR, Rx-3050SR,

includes set screw(3 ea)

Qty: 1

P/N: PY1-7131

Level Vial

Qty: 1

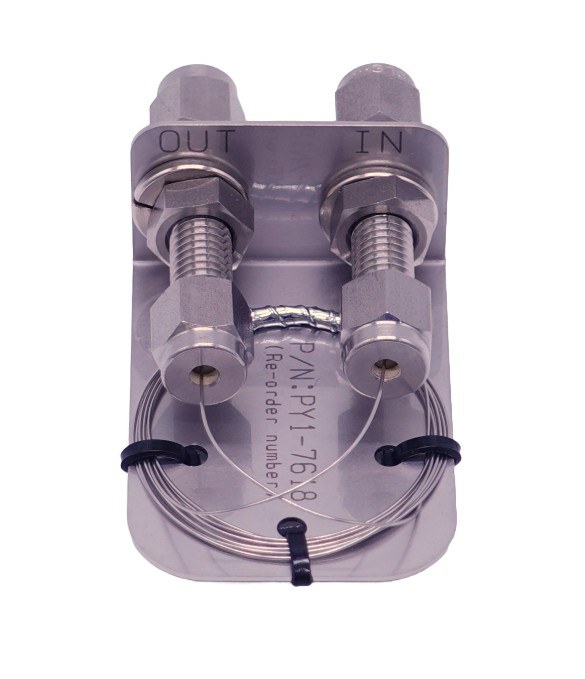

P/N: PY1-7618

Furnace purge gas restrictor B

0.47 mm o.d., 0.15 mm i.d, 1.0 m

Qty: 1

P/N: Rx1-K033

Rx Piping Kit A

1/16” SS tube (0.8 mm i.d., 1.5 m),

Carrier gas union set,

with 1/8 swagelok union

Qty: 1

P/N: UV1-7201

Dewar 350

Liquid nitrogen container, 350 mL

Qty: 1

P/N: UV1-7501

Dewar Holder

Holder to prevent the liquid nitrogen

container fall

Qty: 1

Rx Consumable Parts Set (Rx-3050TR)

P/N: PY1-1274

ITF Needle Set N

Deactivated needle for

PY-3030,PY-2020 and

Rx-3050

Qty: 3

P/N: PY1-2017

O-ring (P-6W)

Quartz pyrolysis tube seal for PY-3030, translucent silicon rubber

Qty: 20

P/N: PY1-5112

Fine Quartz Wool 0.5 g

0.5 g

Qty: 1

P/N: PY1-7911

Graphite Vespel Ferrule

6 mm hole i.d.,

for interface

Qty: 5

P/N: Rx1-1279

Rx ITF Needle B Set

For Tandem micro-Reactor,

1/16” o.d., with nut and ferrule

Qty: 3

P/N: Rx1-3540

Rx Deactivated SS Tube A

For Tandem/Single micro-Reactor,

6 mm i.d., 120 mm length,

deactivated stainless steel

Qty: 1

P/N: Rx1-3541

Rx Blank Quartz Insert A

3 mm i.d., 4 mm o.d., 78 mm length

Qty: 5

P/N: Rx1-3556

High temperature-resistant O-ring (S4)

Fluorine rubber, Black

Qty: 10

Rx Consumable Parts Set (Rx-3050SR)

P/N: PY1-1274

ITF Needle Set N

Deactivated needle for

PY-3030,PY-2020 and

Rx-3050

Qty: 3

P/N: PY1-5112

Fine Quartz Wool 0.5 g

0.5 g

Qty: 1

P/N: PY1-7911

Graphite Vespel Ferrule

6 mm hole i.d.,

for interface

Qty: 5

P/N: Rx1-3540

Rx Deactivated SS Tube A

For Tandem/Single micro-Reactor,

6 mm i.d., 120 mm length,

deactivated stainless steel

Qty: 1

P/N: Rx1-3541

Rx Blank Quartz Insert A

3 mm i.d., 4 mm o.d., 78 mm length

Qty: 5

P/N: Rx1-3551

O-ring (P6)

Fluorine rubber, black

Qty: 10

P/N: Rx1-3556

High temperature-resistant O-ring (S4)

Fluorine rubber, black

Qty: 10

Rx Tool Set A

P/N: PY1-7111

Hex Screw Driver (2 mm)

2.0 mm

Qty: 1

P/N: PY1-7113

Hex Screw Driver (2.5 mm)

2.5 mm

Qty: 1

P/N: PY1-7141

Tweezers

125 mm length

Qty: 1

P/N: Rx1-3531

Double Head Wrench (12/13 mm)

12/13 mm

Qty: 1

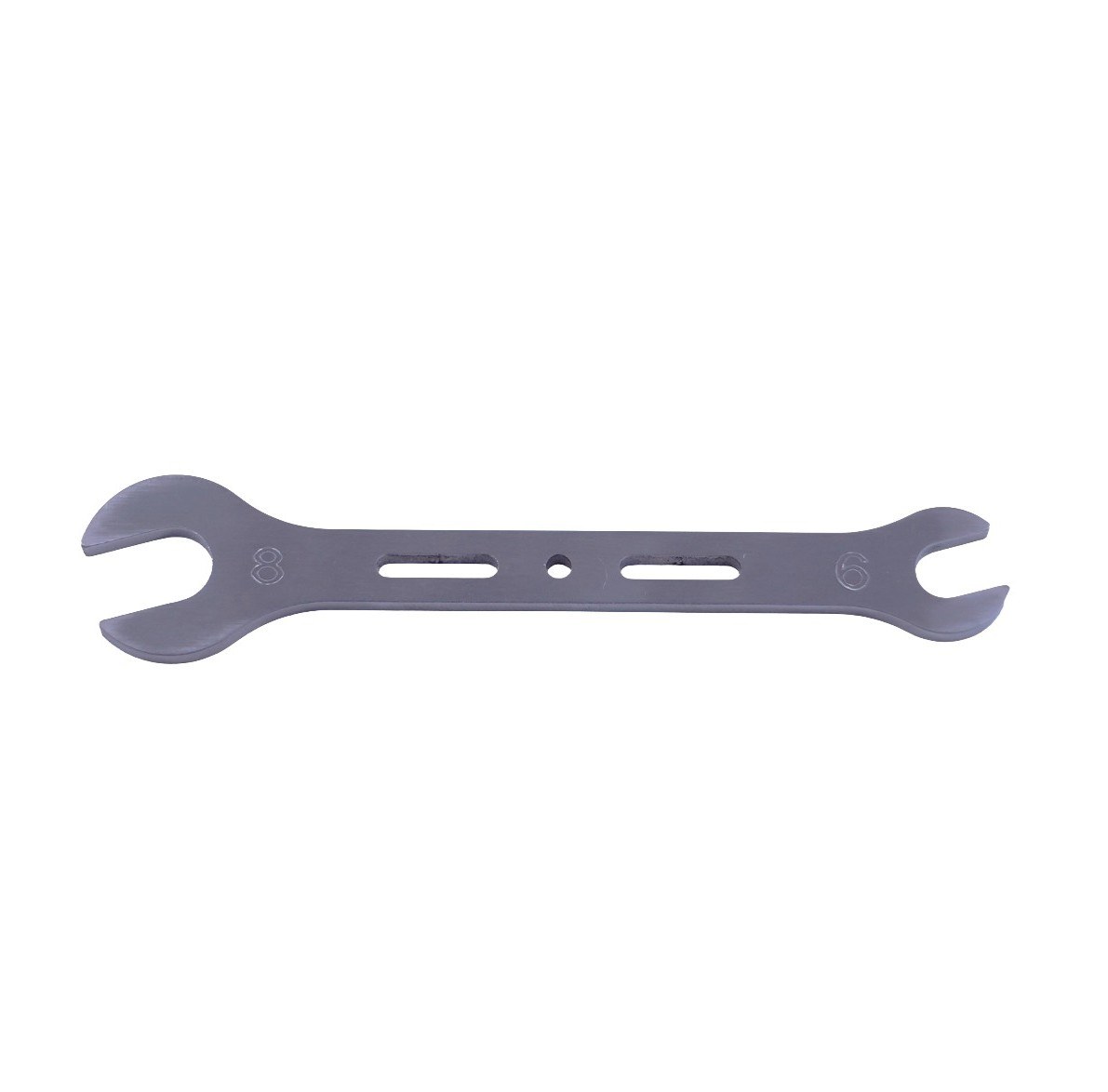

P/N: Rx1-3532

Double Head Wrench (6/8 mm)

6/8 mm

Qty: 2

Rx Tool Set B

P/N: PY1-7111

Hex Screw Driver (2 mm)

2.0 mm

Qty: 1

P/N: PY1-7141

Tweezers

125 mm length

Qty: 1

P/N: Rx1-3531

Double Head Wrench (12/13 mm)

12/13 mm

Qty: 1

P/N: Rx1-3532

Double Head Wrench (6/8 mm)

6/8 mm

Qty: 2
